Full Automatic Johnson Screen Welding Machine / NC Wire Mesh Welding Machine

Brand Name : Renchun

Model Number : HWJ1200

Place of Origin : China

MOQ : 1 set

Payment Terms : D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50 Set/Sets per Year

Delivery Time : 30-90 days

Packaging Details : 1.The mechanical parts bared in container 2.Touch screen and control cabinet packed in wooden box.

Usage : welding Johnson screen

Tube diameter : 600mm-1200mm

Tube length : 6000mm

Wire range : 1.5*2.5mm-3.7*6mm

Welding speed : 6-20rpm

Contact Now

Full Automatic Johnson Screen Welding Machine

NC Wire mesh welding machine / wire wrapped screen pipe welding machine, NC Johnson Screen welding machine, wedge wire screen machine.

1.Tube diameter:6000mm-1400mm.
2.The maximum length of screen is 400mm,in this range,you can produce tube as your requirements.
3.Screen slit gap can be adjusted according to the requirements(in the case of parking or not), range:0.1mm-40mm.
4.Tolerance clearance ±0.01mm.
5.Maximum speed of spindle:20rpm.
6.Servo motor,motor power:15kW two pieces,5kw one piece.
7.Transmission medium adopts Using linear guide and ball screw.
8.Welding transformer :200kVA.
9.We offer three sets of tooling for free.The customer can choose which are between 600mm to1400mm.

Full Automatic Johnson Screen Welding Machine / NC Wire Mesh Welding Machine

Product Tags:

wire mesh making machine

wire mesh weaving machine

Wholesale Full Automatic Johnson Screen Welding Machine / NC Wire Mesh Welding Machine from china suppliers

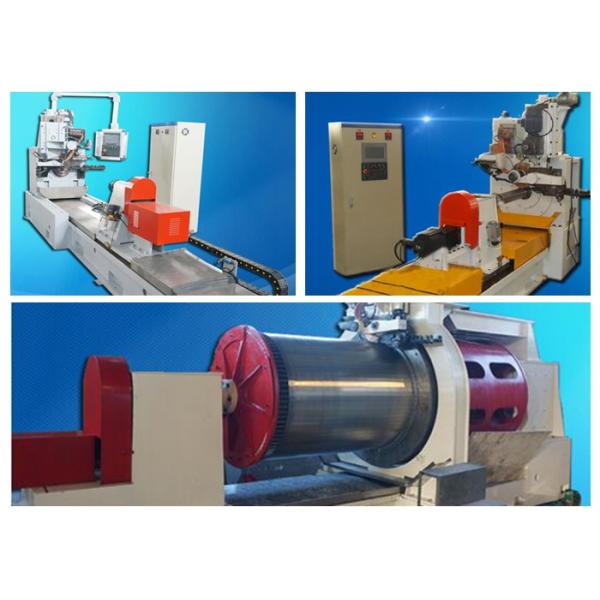

Full Automatic Johnson Screen Welding Machine / NC Wire Mesh Welding Machine Images
