Stainless Steel Wedge Wire Screen Welding Machine With Mitsubishi Servo Motor
Wedge Wire Screen Stainless Steel Water Well Screens Advantages:
- flatness to within tight tolerances
- no weakening of the welds, because of flattening (and no stress corrosion problems as a result)
- accurate distance between support profiles
- possibility of different support wires in one screen
- possibility of variable spacing between support wires in one screen
Basing on Wedge Wire Screen Stainless Steel Water Well Screens Advantages, wedge wire screen welding machines are in urgent needed at this moment.
1. V wedge wire screen stainless steel water well screens /Water well screen description
The wedge wire water well screen welding machine is special for welding wedge wire screen (mesh), water well screen (mesh), Vee-wire screen (mesh) for any filtering purpose in chemistry, mining industry and environmental protection industry, etc.
The advantages of wedge wire screen, such as continuous slots, greater strength, longest operational life, which has instead of bridge screen,slotted screen and others.
How to weld the V wedge wire screen stainless steel water well screens /Water well screen?
Wedge Wire Screen welding equipment adopts Japanese Mitsubishi E60 CNC control system.
Controlled by the Numeral control system, the servo motor drives the ball screw as well as the drawing disk which is mounted on the straight rail, so the slot clearance can be adjusted by touching the control screen without stopping the machine.
It is easy to change the data on the touching screen. Lock-expanding ring is equipped on the machine. After the operator feeds the longitudinal wire, expand and lock the wire with the ring.
2. Wedge Wire Screen Stainless Steel Water well screens Welding Machine parameter
| 1 | Diameter of screen tube | Max.200mm,Min.50mm |
| 2 | Max. Length of filter tube | 4000-6000mm |
| 3 | Rod and wire diameter | 0.75mm to 1.5mm(profile wire) |
| 4 | Material | Carbon steel, stainless steel |
| 5 | servo motor | Three sets:2.5KW |
| 6 | Power of welding transformer | 200KVA |
| 7 | Welding speed is adjustable according to the tube diameter | Max.40rpm,Min6rpm |
| 8 | Slot(adjustable) | Min0.08,Max.5mm |
| 9 | precision of slot | ±0.02mm |
3. our customer

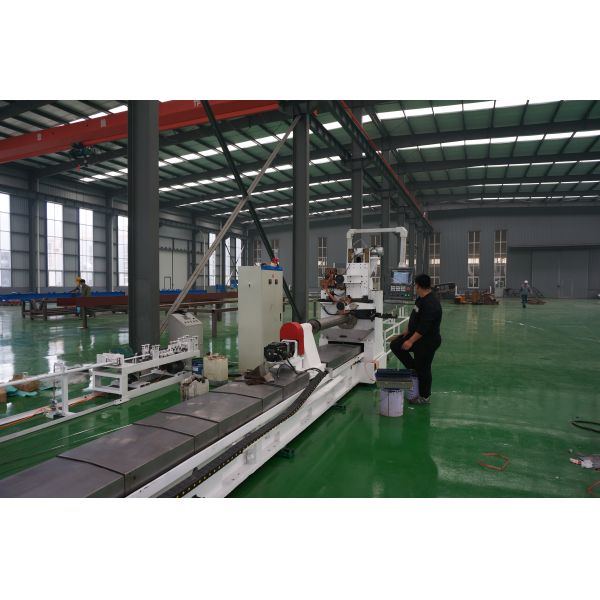

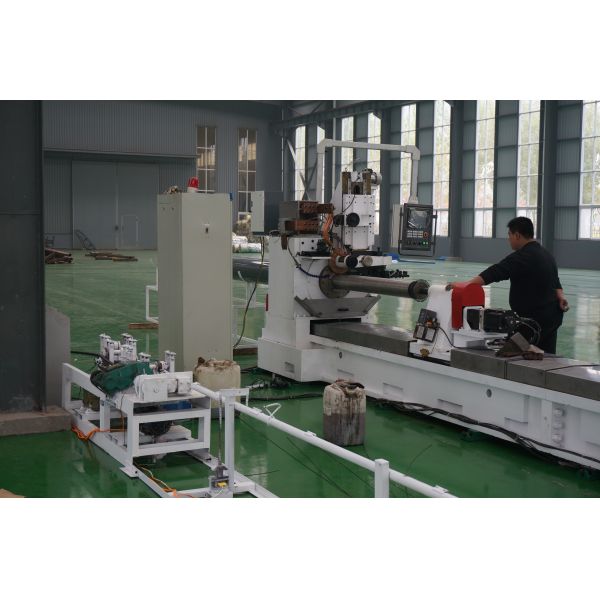

HWJ200 wedged wire screen welding machine With Double Bearings
Sale market:
Domestic market: Heilongjiang , Liaoning, Tianjin, Hebei, Henan, Shandong, Shanghai, Guizhou, Hubei, Shanxi, jiangsu, etc.
Foreign market: the United States, Brazil, Italy, Belgium, South Korea, Singapore, Tunisia, Turkey, Russia, India, etc.
Enterprise development concept and service
friendly cooperation
development and innovation,
mutual benefit
4. Wedge Wire Screen Stainless Steel Water well screens Welding Machine Features and advantages
A. low noise
B. less power consumption
C. safety
D. easy to operate
E. high welding precision
Pre-Sales Service
* Inquiry and consulting support.* Sample testing support.* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
5. Wedge Wire Screen Stainless Steel Water well screens Welding Machine Packing and loading
1. The mechanical parts bared in container
2. Touch screen and control cabinet packed in wooden box.
Wedge Wire Screen Stainless Steel Water well screens Welding Machine Configuration details
1. PLC control
2. Servo motor drive
3. Taiwan famous brand ball screw and linear guide
4. Slew ring bearing (special design)
5. Mitsubishi Or Simens touch screen
