Rotary Profile Wire Screen Welded Wire Mesh Machine With E60 CNC Control System
why do you choose us?
1. we are professional manufacturer,we have obtained the patent for our technology,we worked in this territory for twenty years.
2. we could provided high quality with competetive price machines for you.
3. we provided good service for you,support oversea engineer.
4. twenty years just to produce a machine.
Q: What's the machine price?
A: Please kindly confirm the wedge wire screen details you want to produce,then we can introduce one type for your reference.
Q: Can you make voltage according to my requirement?
A: yes, we can make 3 phase, 380V/220V/415V/440V, 50Hz or 60Hz etc.
Q: What's the payment terms?
A: 30% T/T in advance, 70% T/T before shipment, or 100% irrevocable L/C at sight, or cash etc.
It is negotiationable.
Q: How to install the machines?
A: Please check below "After sales service".
Our Stainless Steel Weld Wire Mesh Welding Machine is an special equipment for making wedge wire screen, wire wrapped screen, johnson screen, and water well screen etc.
Rotary Screens
Rotary Screens Welding Machine For Filtration And Sepration adopts Japanese Mitsubishi E60 CNC control system.
Controlled by the Numeral control system, the servo motor drives the ball screw as well as the drawing disk which is mounted on the straight rail, so the slot clearance can be adjusted by touching the control screen without stopping the machine.
It is easy to change the data on the touching screen. Lock-expanding ring is equipped with the machine. After the operator feeds the longitudinal wire, expand and lock the wire with the ring.
It saves time and material during unload the filter tube.It is easy to learn how to control the machine. It adopts Japanese Mitsubishi E60 CNC control system.
2. Applications
Weld Wire Mesh Machine, also named Rotary Screens welding machine, is usually used in producing Oil sand control screen, water well screen, the water, nozzles and so on. with screen media higher precision, which is widely used in petroleum, chemical, and paper industries.
3. Parameter
| NO. | ITEM | Data |
| 1 | Diameter of screen tube | Max.300mm, Min.50mm. |
| 2 | Max. Length of filter tube | 6000mm |
| 3 | Rod and wire diameter | 1.2mm to 3mm(profile wire)
Please note that:you can also use the biger wire size ,while you should be sure the biger size wire is used to weld the biger diameter screen tube. |
| 4 | Material | Carbon steel, stainless steel |
| 5 | servo motor
| Two sets:5.5KW,One set:3.5KW
|
| 6 | Power of welding transformer | 200KVA |
| 7 | Welding speed is adjustable according to the tube diameter | Max.30rpm,6rpm |
| 8 | Slot(adjustable) | Min0.2mm,Max.16mm |
| 9 | precision of slot | ±0.03mm |
A: Pre-sale service; plant layout design, technical consulting, feasibility studies, cost and ROI analysis;
B: sales services: installation and commissioning, operator training, electrician and mechanic training;
1. Equipment installation and commissioning: assist and guide customer coordinate the equipment layout according to the actual situation, make reasonable arrangements for the overall planing of the installation location. Assigned technician to provide equipment installation, operation, ancillary facilities, production, repair, maintenance services and answer the relevant questions.
2. Training operation and maintenance personnel: our company will provide training of the operation and maintenance personnel according to customer’s requirement.
C: after-sale service; supply spare parts and provide after-sale services
1. supply of spare parts: keep records for each customer, provide long-term supply of spare parts, and send it to customers hand with the fastest speed according to customers’ requirement.
2. Unexpected emergency repair service: once the equipment have malfunction, and the user unable to rule out, we will arrange technician to the user factory in the soonest time, solve the trouble and resume production in time.
Product Tags:
|
|

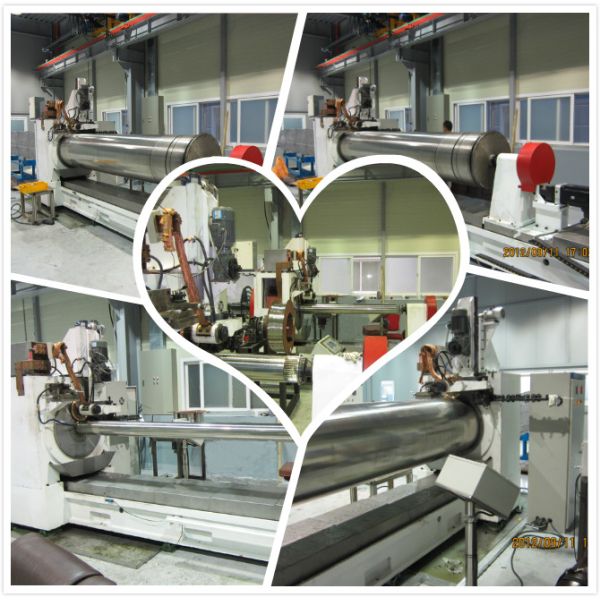

Rotary Profile Wire Screen Welded Wire Mesh Machine With E60 CNC Control System Images
|
